Concrete nails with excellent fixing strength for construction work

It is absolutely impossible to imagine the repair without concrete nails in this work, and especially when it comes to construction work. Concrete nails - one of the most common types of nails used by both professionals and amateurs. Concrete nails are widely used to connect the wooden elements and structures, as well as fixing them soft materials. The structure of the nail has a circular section and a flat or conical head. Roughness before the cap significantly improves the reliability of the connection.

All this type nails are divided into the following types: electro-galvanized, hot-dip galvanized nails, as well as acid-resistant, stainless steel and copper nails.

If the nail should be left inside the structure, it is best to use nails from hot galvanized steel. Black nails intended for temporary attachment rust appears on them even after contact with air. For the interior, you can use electro-galvanized nails or black nails. acid-resistant required for particularly difficult places. Copper nails have a decorative hat used in the decoration.

Eight black concrete nails have plain shanks and conical heads
Blackened concrete nail with plain shank
Eight black concrete nails have groove shanks and flat heads
Black concrete nails with groove shanks
Two hot galvanized concrete nails and two black concrete nails
Two hot galvanized and two black concrete nails with large flat head

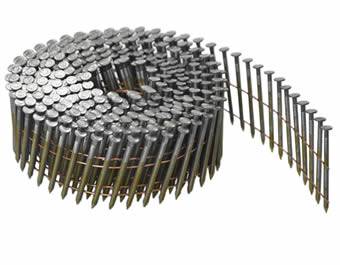

Coil nails from flat head concrete nails
Coil nails allow you to quickly and accurately finish work

Features:

  • It is harder with excellent fixing strength.
  • Excellent anti-bending, anti-crack and safety.
  • With various special nail heads (headless, round flat head or square head) and shank types (smooth shank, ring shank, twisted shank, twilled shank).
  • It is used in construction and other industry fields.

Specification:
Material: low carbon steel wire, stainless steel wire, copper or brass wire.
Finished: polished, electro or hot dipped galvanizing, acid-resistant, black, color, copper plated or brass plated
Size: diameter from 1.2mm to 8.0mm, length 16mm to 350mm.

General nails schematic diagram and sizes as below:

General concrete nails schematic diagram shows nail diameter, length, head diameter and head height
General concrete nails schematic diagram

Concrete nails
Nail diameter Head Diameter Head height Length
1.2 2d 0.6d 20; 25
1.4 2d 0.6d 25; 32; 40
1.6 2d 0.6d 25; 40
1.8 3.5d 0.6d 32; 40; 50; 60
2.0; (2.2) 4d 0.6d 40; 50 (45; 60)
2.5; (2.7; 2.8) 5d 0.6d 50; 60 (40; 55; 70)
3.0; (3.1) 6d 0.6d 70; 80 (40; 50; 55; 60)
3.5; (3.8) 7d 0.6d 90 (70; 80)
4.0; (4.2; 4.5) 7.5d 0.6d 100; 120 (90; 110)
5.0 9d 0.6d 120; 150 (110)
6.0 11d 0.6d 150; 200
Concrete nails
Nail dia. × Length (mm) weight Kg/1000 pcs Nail dia. × Length (mm) weight Kg/1000 pcs
1.2 × 20 0.183 2.0 × 50 1.19
1.2 × 25 0.219 2.5 × 50 1.87
1.4 × 25 0.302 2.5 × 60 2.23
1.4 × 32 0.385 3.0 × 70 3.77
1.4 × 40 0.482 3.0 × 80 4.33
1.6 × 25 0.397 3.5 × 90 6.60
1.6 × 40 0.633 4.0 × 100 9.50
1.8 × 32 0.640 4.0 × 120 11.50
1.8 × 40 0.787 5.0 × 120 17.80
1.8 × 50 0.967 5.0 × 150 21.90
1.8 × 60 1.160 6.0 × 150 32.40
2.0 × 40 0.949 6.0 × 200 43.10

Concrete nails packing:

  1. 20-25k per carton or wooden box in bulk .
  2. 75 or 100 pieces/box then cartons.
  3. 400 gram/box, 50boxes/paper carton.
  4. 500gram/box 40boxes/paper carton.
  5. 1kg/box,25box/carton.

A few tips that may help you:
If you do not want to leave the hammer dents on the surface of the part, use a countersink bit .
In the clean surface nail heads should be recessed and filled.
Nail thickness of 5mm or more, may split the board. Therefore, when driving with thick nails need to do pre-drilling. Pre-drilling is necessary to do and when nailing into hard wood, or a nail can bend.
Nail hammered along the fibers, holds much less than a nail hammered across them .
Nails hammered at an angle, make the joint parts more durable.

Galvanized concrete nails

Galvanized concrete nails are designed for outdoor installation of wooden elements, since they are less prone to corrosion due to galvanic zinc coating. May also be used for interior and finishing work.
Galvanized concrete nails diameter from 1.2mm to 6.1mm, length from 16mm to 200mm.

Three hot dipped galvanized concrete nails with large heads
Galvanized concrete nails with large heads, groove shanks and diamond points
Galvanized concrete nails (Smooth Shank or Twilled Shank) Diameter (mm) × Length (mm)
1.2 × 16mm 1.6 × 40mm 2.5 × 60mm 4.5 × 100mm
1.2 × 20mm 1.8 × 32mm 3.0 × 70mm 4.8 × 80mm
1.2 × 25mm 1.8 × 40mm 3.0 × 80mm 4.8 × 90mm
1.4 × 25mm 1.8 × 50mm 3.4 × 50mm 4.0 × 120mm
1.4 × 32mm 1.8 × 60mm 3.5 × 90mm 5.0 × 120mm
1.6 × 25mm 2.0 × 40mm 3.8 × 65mm 5.0 × 150mm
1.6 × 30mm 2.0 × 50mm 4.0 × 100mm 6.1 × 180mm
1.6 × 32mm 2.5 × 50mm 4.2 × 75mm 6.1 × 200mm

Black concrete nails

Black concrete nails are designed for fastening wooden parts are not exposed to moisture such as internal structure - floors. They can also be used for applications where appearance is important not the finished product. Due to the lack of galvanizing , these nails are easily prone to corrosion.
Nail diameter from 1.2mm to 8.8mm, length 16mm to 310mm, standard sizes 150mm, and rare 200 and 300mm.

Black concrete nails with high length and small head
A bunch of black nails for construction use
Black concrete nails
Nail diameter Nail length (mm)   Nail diameter Nail length (mm)
1.2mm 16, 20, 25 3.5mm 90, 100
1.4mm 25, 30, 32, 40 4.0mm 100, 120
15mm 30, 35, 40 4.2mm 75, 100, 125
1.6mm 25, 32, 40 5.0mm 120, 150
1.8mm 32, 40, 50 6.0mm 150, 180, 200
2.0mm 20, 25, 30, 40, 50 7.6mm 250, 260,
2.5mm 25, 30, 40, 50, 60 8.0mm 250, 280, 300
3.0mm 30, 40, 50, 70, 80, 90, 100 8.8mm 300, 310

Stainless steel concrete nails

Stainless steel concrete nails with extra grip are ideal used in roofing applications for connecting oak and cedar timber. Our company offers a full range stainless steel nails in annular ring, round head, lost head, and clout nails. They are always kept very good stock.

Three stainless steel nails
Stainless steel annular ring nails
Three stainless steel concrete nails with small heads
Stainless steel lost head nails
Stainless steel concrete nails
size D nail diameter mm L nail length mm D head diameter mm H head height mm Weight kgs/1000 piece.
1.6 × 20 1.60 20.00 3.20 0.96 0.32
1.6 × 25 1.60 25.00 3.20 0.96 0.40
1.8 × 32 1.80 32.00 3.60 1.08 0.64
1.8 × 40 1.80 40.00 3.60 1.08 0.79
1.8 × 50 1.80 50.00 3.60 1.08 0.97
2.0 × 40 2.00 40.00 4.00 1.20 0.95
2.0 × 50 2.00 50.00 4.00 1.20 1.19
2.5 × 50 2.50 50.00 5.00 1.50 1.87
2.5 × 60 2.50 60.00 5.00 1.50 2.23
3.0 × 70 3.00 70.00 6.00 1.80 3.77
3.0 × 80 3.00 80.00 6.00 1.80 4.33
3.5 × 90 3.50 90.00 7.00 2.10 6.60
4.0 × 100 4.00 100.00 8.00 2.40 9.50
4.0 × 120 4.00 120.00 8.00 2.40 11.50
5.0 × 150 5.00 150.00 10.00 3.00 21.90
4.0 × 150 4.00 150.00 8.00 2.40 14.38
6.0 × 200 6.00 200.00 12.00 3.60 43.10

Copper nails

A copper concrete nail with very large flat head and sharp end
Copper nails are less prone to corrosion having cute hats and pretty attractive appearance. and consequently are classified as decorative nails. Shipped in bulk from 50kg in wooden boxes for 30, 35 , 40, 45, 50kg. depending on the dimension or in cardboard boxes of 25kg.

We also manufacture color concrete nails, Sunk-Head Concrete Nails and K Concrete Nails / T Concrete Nails, their sizes as following:

Color Concrete Nails Diameter (mm) × Length (mm)
3mm × 25mm 3mm × 30mm 3.2mm × 40mm 3.6mm × 50mm 4mm × 60mm 4.2mm × 75mm 4.2mm × 100mm
Sunk-Head Concrete Nails Diameter (mm) × Length (mm)
2.5mm × 25mm 2.5mm × 30mm 2.5mm × 40mm 3mm × 30mm 3mm × 40mm 3.2mm × 50mm
3.6mm × 6mm 4mm × 75mm 4.2mm × 100mm
K Concrete Nails / T Concrete Nails Diameter (mm) × Length (mm)
3mm × 25mm 3mm × 40mm 3.8mm × 25mm 3.8mm × 40mm 3.8mm × 50mm 3.8mm × 65mm
3.8mm × 75mm 3.8mm × 10mm 4.0mm × 100mm 4.0mm × 120mm 4.5mm × 150mm
